M.G.M. Products - SMX Series (High efficiency)

MGM squirrel-cage motors deliver exceptional performance and reliability combined with low maintenance. Designed for continuous duty under tough service conditions, these low-noise motors are used wherever compactness, energy saving and reliability are primary requirements. SMX series represent today's state of the art motors technology.

Power Range: 0.12 HP - 10HP
SMX - High Efficiency Power Range: 12 HP - 60HP (SM - Standard Efficiency)

• All motors designed for inverter duty
• Single Speed / Two Speed
• Totally Enclosed Fan Cooled (TEFC)
• Dimensional Standards per IEC (Metric)
• Continuous duty
• Standard design or Built-in Inverter design (SMI Series)
• Electrical Standards per NEMA-MG1
• Compact or Oversized Conduit Box
• Pressed-steel fan guard
• Molded plastic fan
• Extremely low rotor inertias
• High-cycle application
• cCSAus approved
• CE Mark for shipment into Europe

Insulation System

• Phase insulators
• Class F (Class H on request)

Mounting Configuration

• Feet Integrated in the frame
• Foot Mount(B3)/Face Mount (B14)/Flange Mount (B5)
• Reduced or Increased flange/shaft size available
• Suitable for mounting in any position

Typical Applications

• Standard Induction Duty Applications
• Pumps
• Packaging Machinery
• Conveyors
• Synchronized Systems
• Speed Regulated
• Crane End Truck/Trolley Etc. See Applications Section

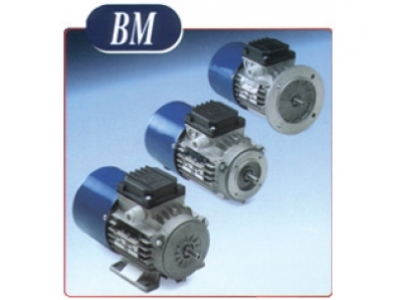

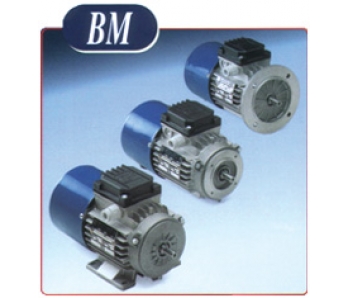

·     M.g.m. BM series products

MGM, squirrel cage motors and brakemotors provides the best performance and reliability with low maintenance. For continuous duty is the use of harshconditions, the use of these brakemotors in a fast, accurate, high cycle, safety braking combined with compact dimensions, the need for low noise applications. The BM series represents the state of the art in the technology ofbrake motor. Power range: 0.12 to 60 HP HP.

- >; >; click here for MGM motor comparison chart.

And the main characteristics

All design motor inverter duty

And single speed, double speed

And totally enclosed fan cooled (TEFC)

And the standard size IEC (Metric)

And continuous work

- Standard Design

Requirements of manual brake release

And DC brake (single Dr. built-in rectifier)

- connecting separate brake terminal at the motor terminals or terminals

And each nema-mg1 Electrical Standard

And compact or large pipe box

And pressure plate fan cover

And plastic molding machine

A very low rotor inertias

High cycle applications

In the nondestructive testing and Alan key manual rotation of the shaft angle of six holes

Ccsaus approved

And transported to the CE mark in Europe

And shipped to Chinese CCC approval

To the product catalog (link to the directory Part)

And insulating system

Phase insulator

And vertical tilt

- top stick (wedge)

- tank lining

And installation and configuration

In the framework of integrated feet

- foot patch (B3) / surface mount (B14) / flanges (B5)

And to reduce or increase the flanged shaft size

- suitable for mounting in any position

And optional features

The responsibility to protect, serious (Flushing ocean)

50 hertz global use

And forced low frequency operation of cooling

And a thermostat or thermal resistor (PTC)

And class H insulation

Installed encoder

And the drainage hole

And the micro switch detector (open / close brake shoe wear)

And typical applications

- standard inductive load applications

- theatre / stage

Cargo lifting platform for people

Packaging machinery

- Conveyor

And synchronization system

- speed regulation

And vehicle stacking machine

- crane end car / car see application part
